48V 50Ah 100Ah 150Ah 200Ah lifepo4 Lithium ion battery for home use solar storage system

Inquire Now

48V 50Ah 100Ah 150Ah 200Ah lifepo4 Lithium ion battery for home use solar storage system

Features

Model: NV-PW48100LFPP
Battery type: LiFePO4
Voltage: 51.2V
Capacity: 100Ah
Energy: 5.12KWh
Battery type: Power wall
Brand: NOVACELL
Communication: CAN/RS485/RS232

Advantages

Life Cycle: 6000+ cycles
Warranty: 3+ years
Weight: Light
Safe: The safest
Installation: Easy
Compatible: Most brand inverters
Capacity expansion: up to 16pcs
Certificate: CE RoHS CB

Application

Solar storage
Energy storage
Wind storage
Home energy system
Solar system
UPS
Solar energy system
Home use

Specification

Electrical Characteristics	Nominal Voltage	51.2V
	Nominal Capacity	100Ah
	Energy	5120Wh
	Battery type	LiFePo4
	Cycle Life	6000+ cycles
	Months Self Discharge	≤3% per month at 25℃
Standard Charge	Charge Voltage	58.4±0.2V
	Charge Mode(CC/CV)	At 0℃~45℃, charged to 58.4V at constant current of 0.2C5A, and then change continuously with constant voltage of 58.4V until the current was not more than 0.02C5A.
	Standard Charge Current	50A
	Max.Charge Current	100A
Standard Discharge	Standard discharge Current	50A
	Max. Discharge Current	100A
	Disxcharge Cut-off Voltage	40.0V
Environmental	Charge Temperature	0℃~45℃
	Discharging	-10℃~60℃
	Storage temperature	-5℃~35℃
	Storage Humidity	≤75% RH
	Water Dust Resistance	IP54
Mechanical	Cell	16S1P
	Housing	Steel
	Dimension(LWH*)	4U 482400170mm
	Communication interface	RS485/RS23/CAN
	Weight	≤48kg

Details

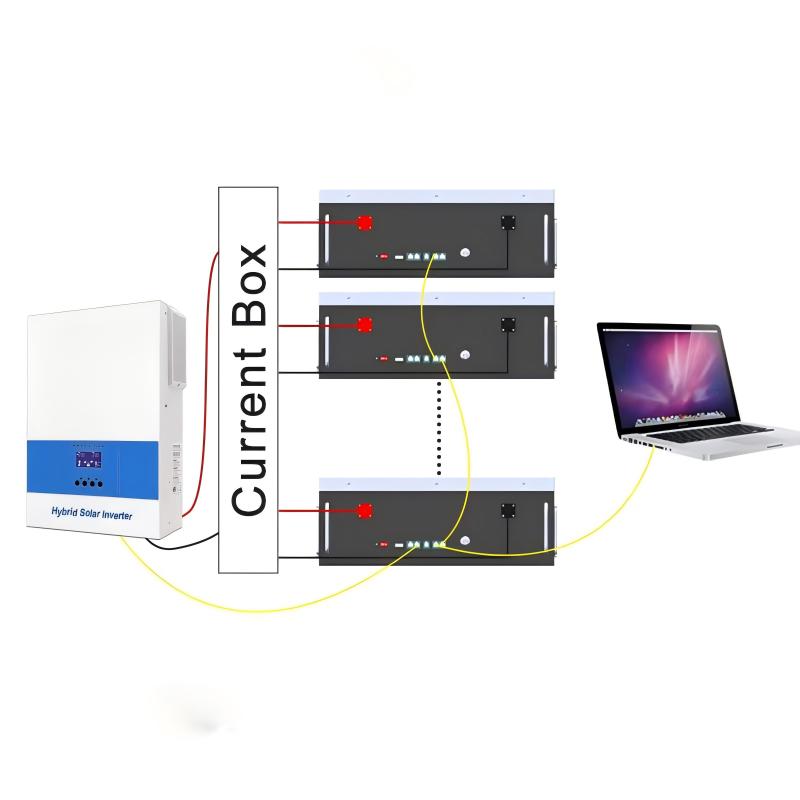

48V 100Ah energy storage battery could be use for solar, wind and electricity, this battery is power wall mounted type, it's very easy for installation, this battery is compatible with most brand inverters in the market, and this battery could be parallelled with other batteries to increase the whole system energy storage capacity
